ZD-1WG2.2Q
ZOMDO
84322900.00
| Quantity: | |
|---|---|
Product Description

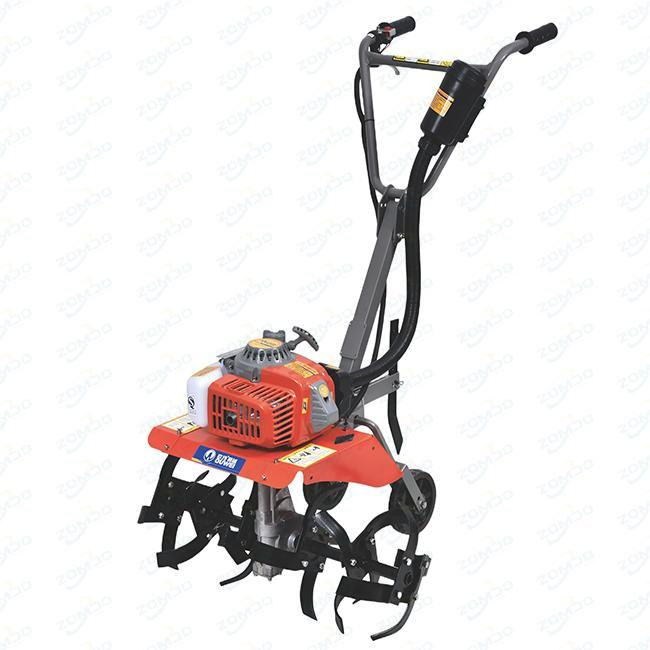

Product Name | Mini Tiller, Walking Tiller |
| Product Model | ZD-1WG2.2 |

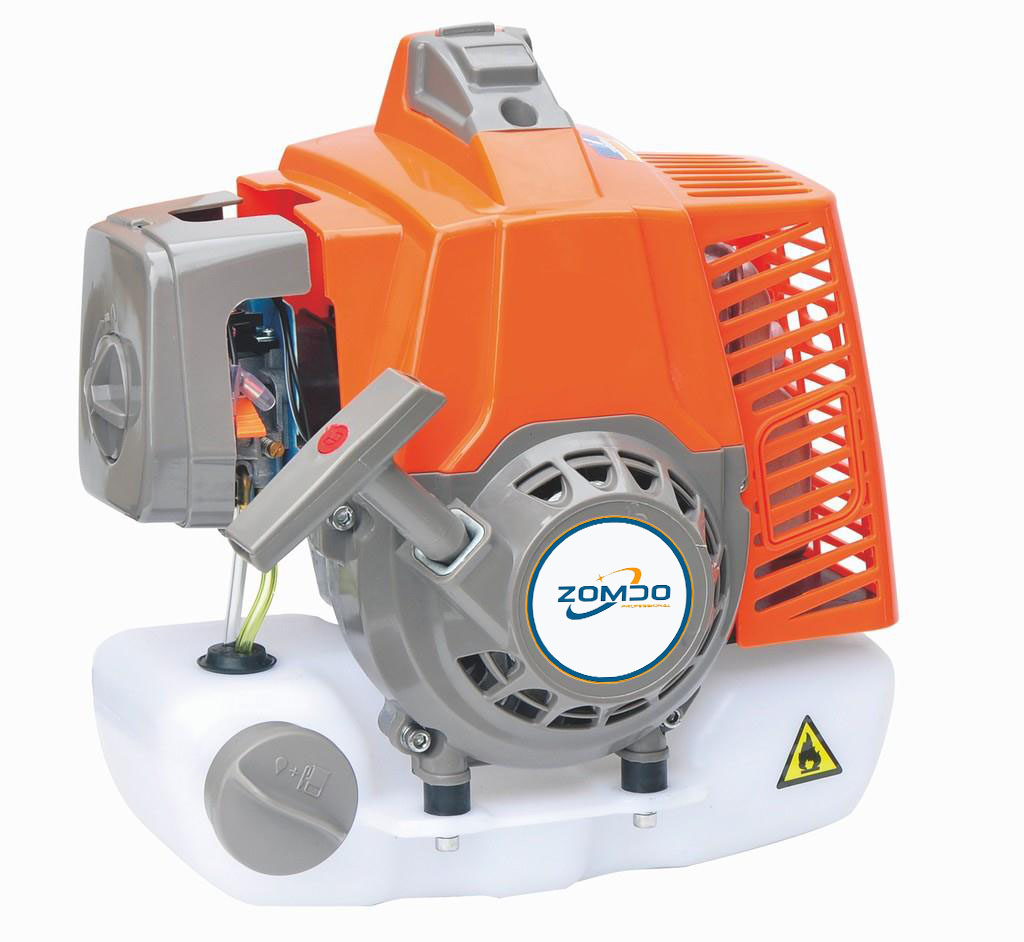

Engine Model | 1E48 |
Power/Rotational Speed | 2.2kw/6500rpm |
Displacement | 63cc |
Starter | Manual(Recoil Starter) |
Carburetor | Diaphragm Type |
Idling Speed | 2800~3200r/min |
Fuel Tank Capacity | 1.3L |
Fuel Oil | Mixed Fuel |
| Mixed Ratio of Fuel | 25:1(Gasoline : Oil special for 2-stroke engine) |
| Clutch Type | Automatic Centrifugal |
Reduction Gear Ratio | 1:29 |
| Oil Capacity of Gearbox | 200ml |
| Working Width | 650mm |
| Productivity per hour | 0.04~0.06hm2 (h/m) |
Cutting Strengthen
Anti-entanglement
Centrifugal clutch was adopted, which makes operation easier and safer
Gear and worm gear with two-stage speed reduction, large speed ratio, small volume, light weight and large transmission torque
Two stage air filter is adopted to isolate dust, protect power and prolong service life
Selection with specialized rotary blades, suitable for a wide range of field
